XF-109 VOIDRUNNER

Loading…

XF-109 VOIDRUNNER

Loading…

The fastest shape Zephyr Industries has ever printed. The XF-109 Voidrunner channels maximum airflow through its large forward intake into a 50mm XFly 4S EDF, wrapped in the sleekest, most aerodynamic airframe in the lineup. Thin wings, narrow fuselage, and a DSI-inspired canopy keep drag to a minimum. Surprisingly stable at speed — gyro recommended for launches only.

Key Features

High-Speed Aerodynamic Design - sleek fuselage and thin swept wings optimized for straight-line speed
DSI-Inspired Canopy - cockpit shape doubles as a boundary layer management surface
Large Forward Intake - maximum airflow to the 50mm XFly 4S EDF
LW-PLA Construction - active foaming for optimal strength-to-weight ratio
PLA+ Reinforced Components - strengthened control surfaces and structural parts
TPU 95A Hinges - durable flexible hinges for smooth control response
Optional Carbon Spars - 6mm wing spars and 4mm stabilizer spar for added peace of mind
Magnetic Hatch System - 8x3mm magnets for clean, tool-free battery access
Optional Separate Canopy - print in clear PETG for a custom look or keep it standard
Rock Solid Stability - gyro helps with hand launches but completely unnecessary in flight

Specifications

XF-109 Voidrunner

Wingspan	377mm
Length	793mm
Weight	~540g
Power	4S LiPo
EDF	50mm XFly 4S
Max Battery Width	38mm
Recommended Battery	1500mAh 4S (~176g)
Front Wing Spar	6mm × 135mm (optional)
Rear Wing Spar	6mm × 185mm (optional)
Horizontal Stab Spar	4mm × 125mm (optional)

Required Parts

XF-109 Voidrunner

XFly 50mm 4S EDF
40A ESC
3× 4.3g metal-gear servos (DSPower DS-S002M or Emax ES9052MD)
1.2mm pushrods
8x3mm magnets (4x)
~12" servo extension for elevator servo
1500mAh 4S LiPo (38mm max width)
Receiver of choice
Optional: gyro

Materials

LW-PLA (ColorFabb/eSUN active-foam) for main airframe
PLA+ for control surfaces and structural parts
TPU 95A for hinges
Optional: Clear PETG for separate canopy
CA glue (medium)
Hot glue
Masking tape for servo covers
Velcro

What's Included

Quick-Start Pack — Includes filament and process profiles for LW-PLA and PLA+ for 14 popular printers, test part instructions, and advanced modifier setup guides

Manual — Includes manual

3D Print Files — Includes all files needed for printing

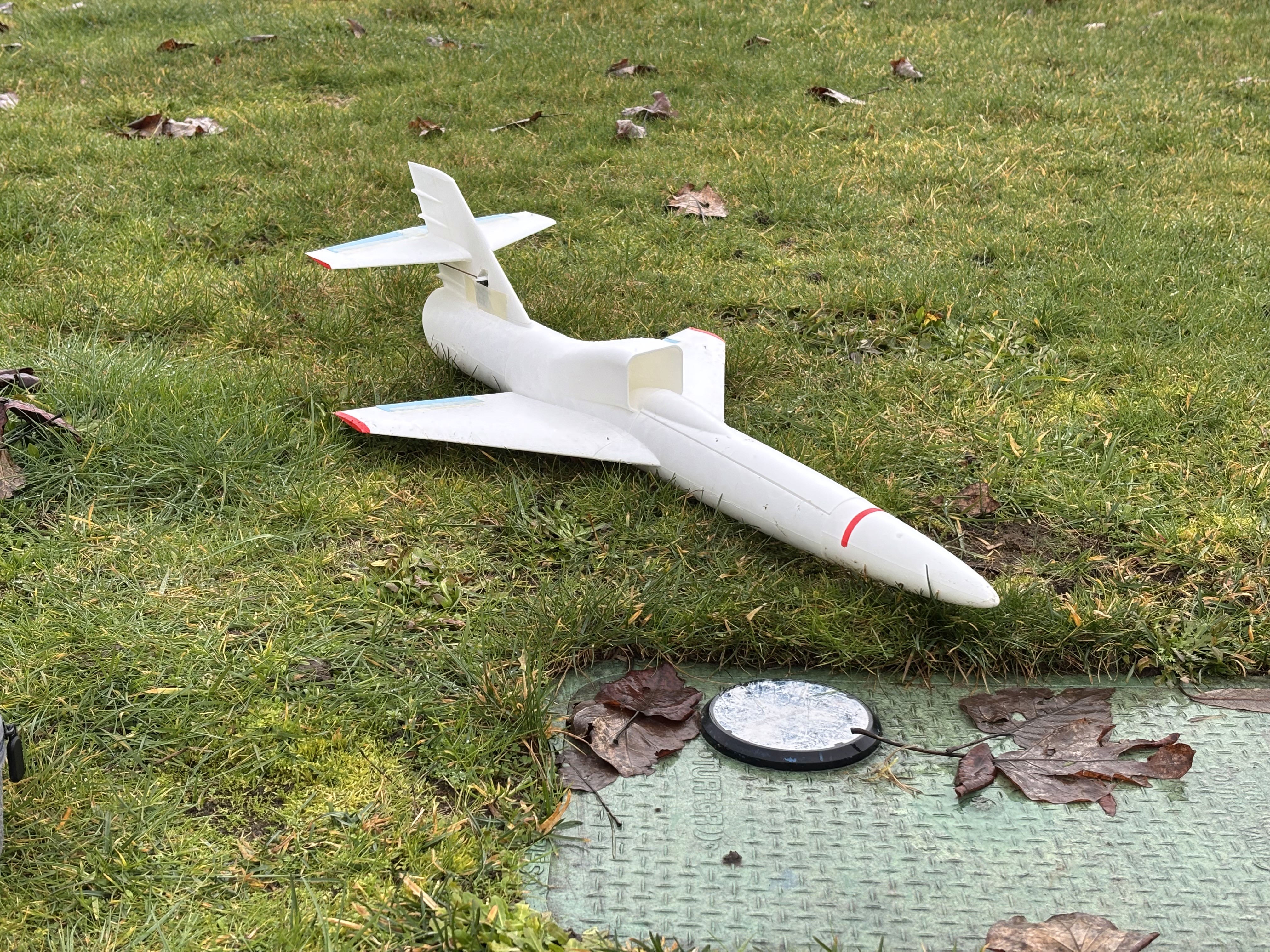

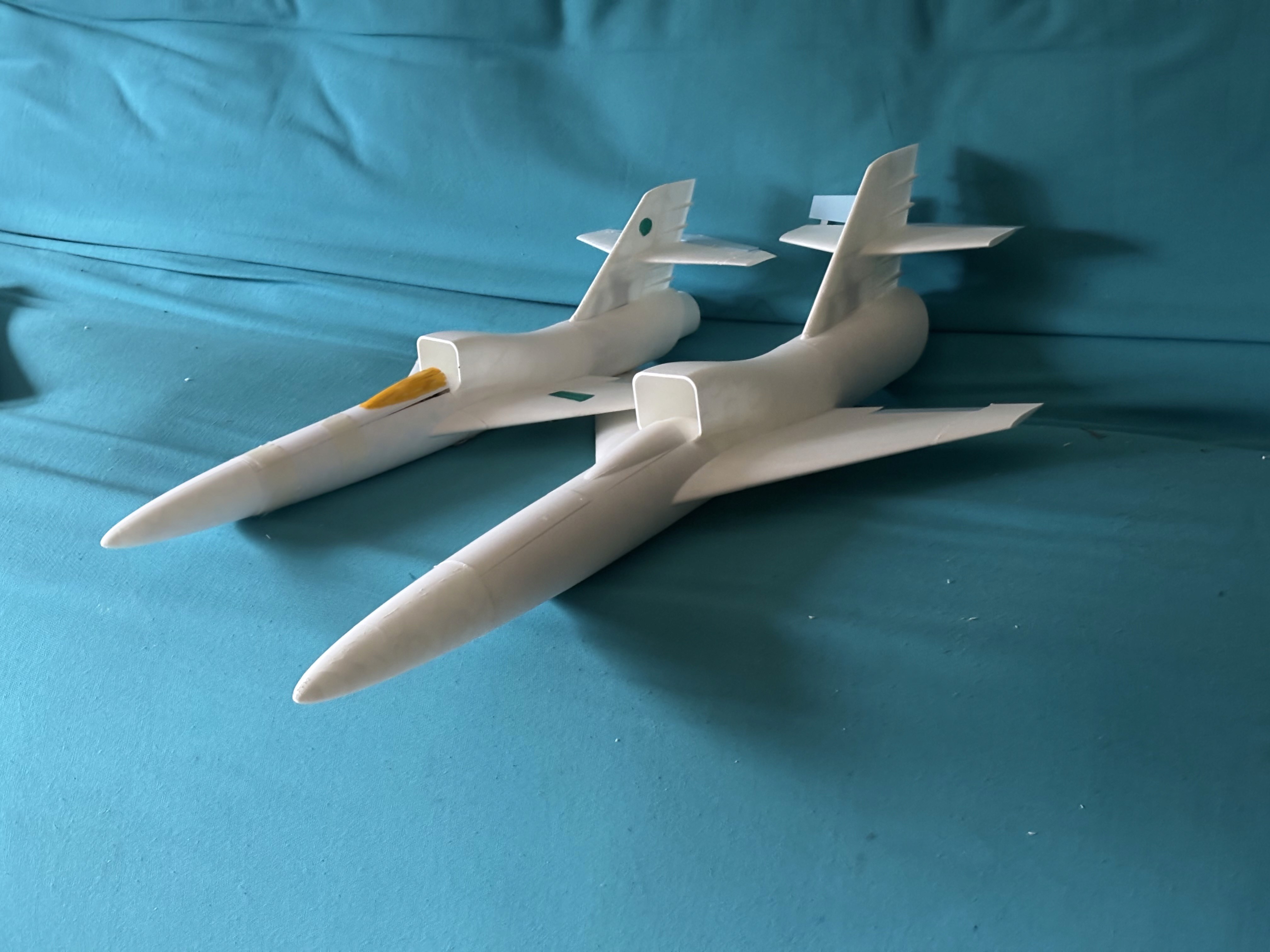

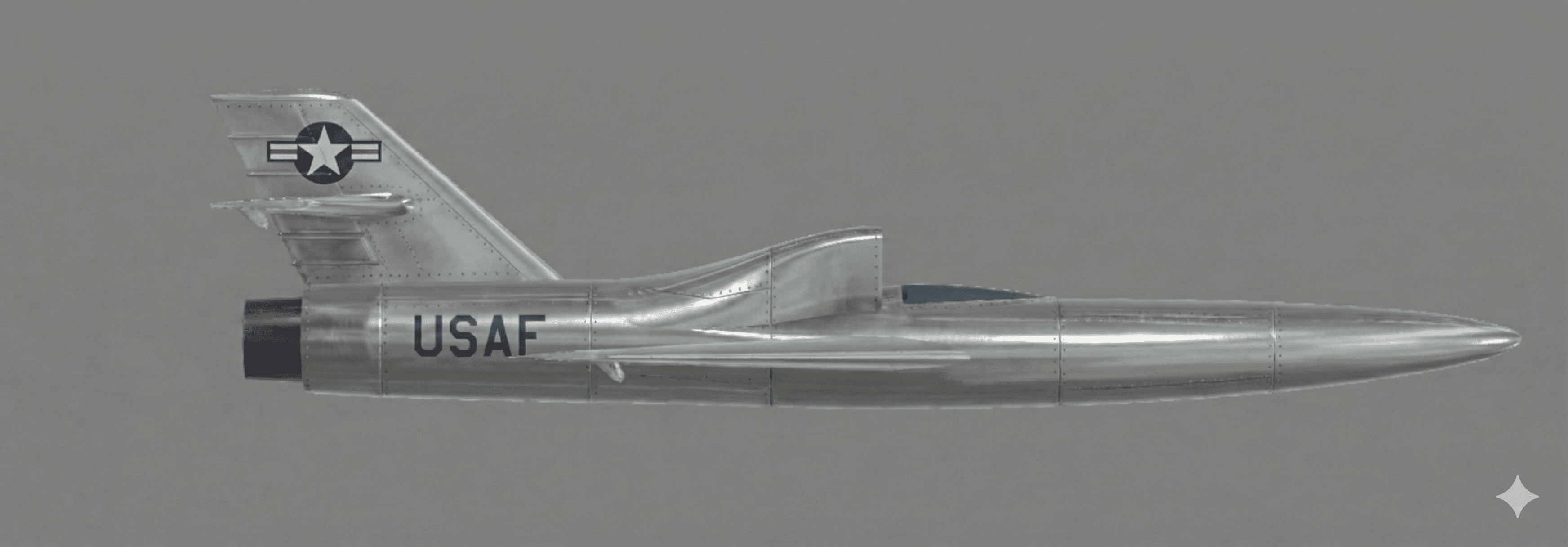

Gallery
