The Ventus EDF is a sleek micro jet with a futuristic top-mounted intake and a sharp, modern silhouette, backed by a proper jet-like EDF sound. It’s fast for its class but still fun and manageable: the 30 mm build is a true microjet, smaller in your hand than you expect, while the 40 mm version scales up the size and punch for bigger spaces.
Key Features
- Pocket-Size Performance - True jet experience in a package small enough to fly anywhere
- Two Size Variants - Choose ultra-compact 30mm or the more powerful 40mm version
- Smooth Ducting - Efficient airflow design increases static thrust and efficiency
- Filament Alignment - Uses filament segments for precise alignment of fuselage sections during assembly
- Lightweight Construction - Efficient LW-PLA design maximizes thrust-to-weight ratio
- Simple Assembly - Minimal parts and intuitive construction
- Zephyr Manual Viewer – The ultimate build companion for Mac and Windows. Ditch static PDFs for fully interactive 3D guides. Rotate models, identify parts instantly, and follow clear step-by-step assembly instructions to build your aircraft with confidence
Specifications

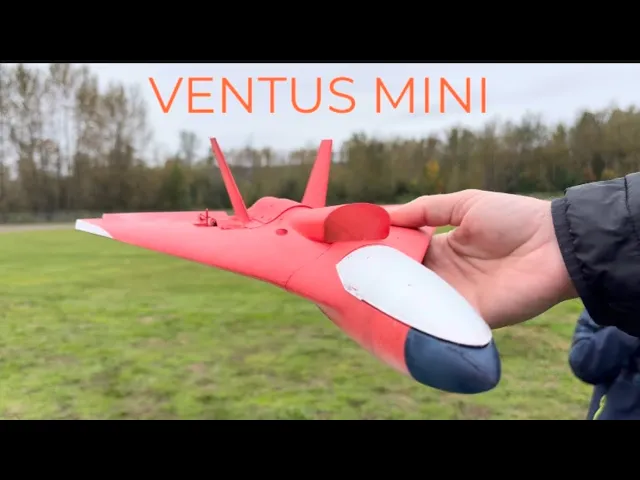

30mm Version — Ultra Compact
| Wingspan | 300mm (11.8") |
| Length | 328mm (12.9") |
| Flying Weight | ~175g |
| Power System | 3S LiPo |
40mm Version — Performance
| Wingspan | 540mm (21.3") |
| Length | ~590mm (23.2") |
| Flying Weight | ~500g |
| Power System | 4S LiPo |
Parts Required
30mm Version — Ultra Compact
- EDF Unit: XFly 30mm 3S EDF
- ESC: 15A Mantis or XFly 20A
- Servos: 2× DSPower 2g
- Gyro: HobbyEagle A3 Mini Required
- Receiver: SBUS-capable
- Battery: 650mAh 3S LiPo (Tattu recommended)
- Pushrods: 0.8mm
40mm Version — Performance
- EDF Unit: XFly 40mm 4S EDF
- ESC: 30–40A
- Servos: 2x 4.3g (Metal Gear preferred)
- Gyro: Optional
- Battery: 850mAh 4S LiPo
- Pushrods: 1.2-1.3mm
- Hinges: TPU 95A
Shared Materials & Consumables
- Primary Structure: LW-PLA (active foaming)
- High-Stress Parts: PLA+ (optional)
- Adhesives: CA medium + CA thin
- Transmitter: RadioMaster Boxer or equivalent
What's Included
3D Print Files — Includes all STL files needed for printing
Quick-Start Pack — Includes profiles for 14 printers, test parts, and modifier guides
Manuals & Viewer — Includes PDF Manual and Zephyr Manual Viewer (Interactive 3D App)

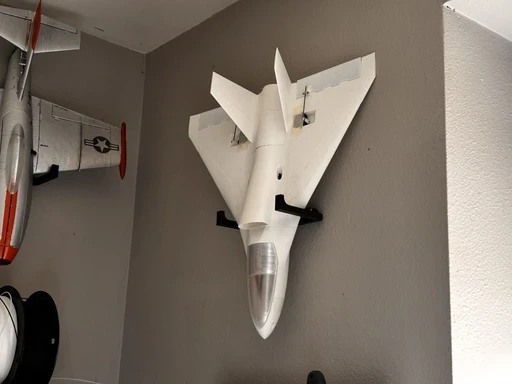

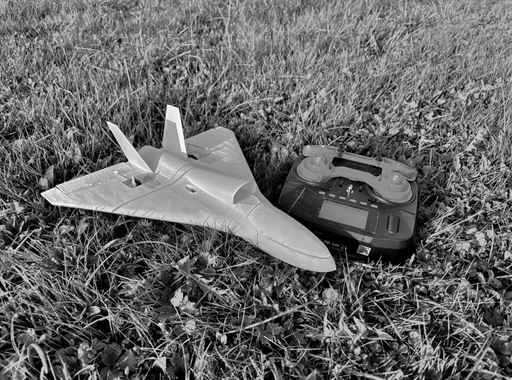

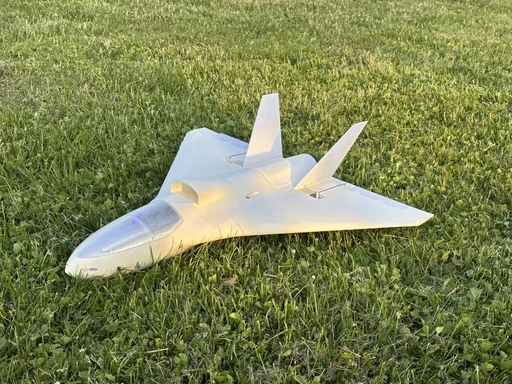

Gallery
