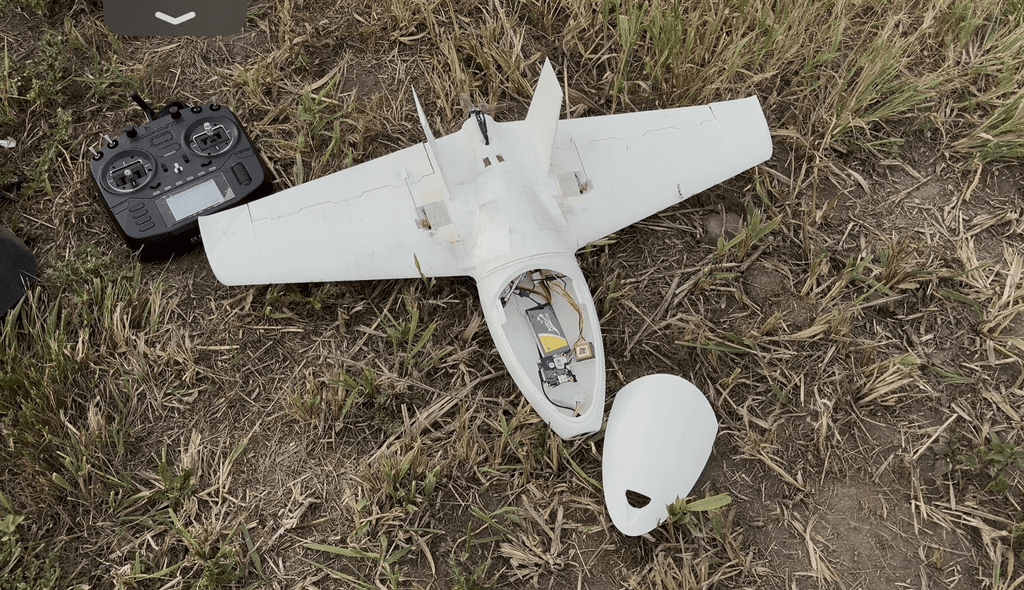

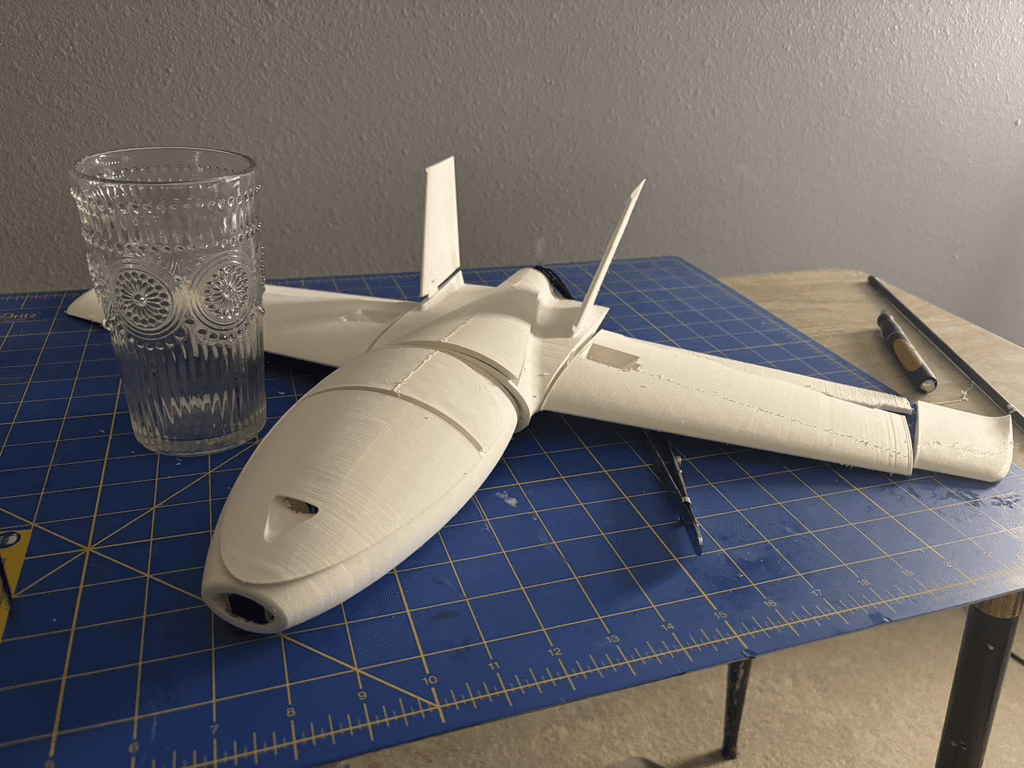

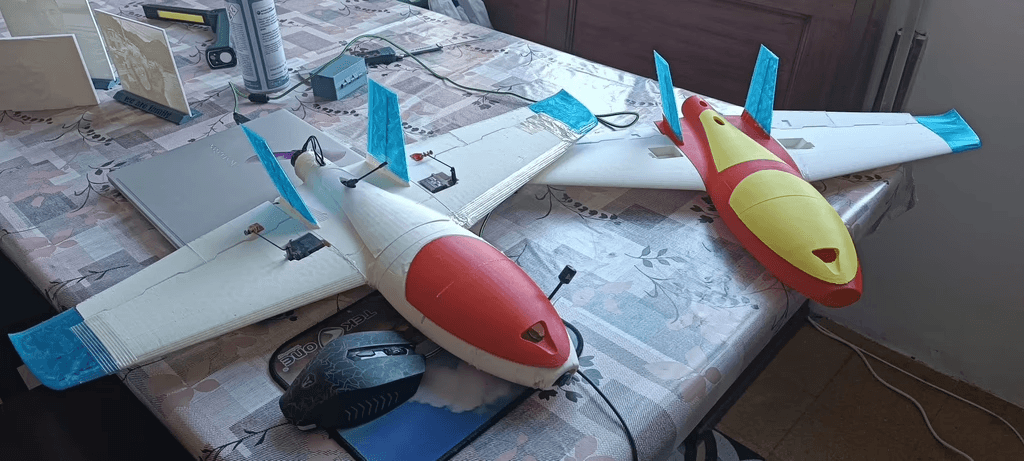

Join the sub-250g FPV revolution with 3D printing. The Velora Mini FPV brings proven small-wing performance to your printer, delivering the thrills of compact FPV flight at a fraction of traditional costs. Designed specifically for the DJI O4 Lite system, this nimble wing achieves legal sub-250g weight with the right setup. Built using the same trusted electronics configuration that powers popular mini wings, the Velora Mini gets under 250g with just 3% infill and a lightweight battery. At this weight class, LW-PLA construction has proven surprisingly resilient through extensive testing. The bottom-mounted flight controller and weight-optimized design squeeze every gram out while maintaining structural integrity. Experience the freedom of printing your own fleet. When crashes happen, print replacement parts overnight instead of waiting for shipments.
- Sub-250g Legal - Achieves legal weight limits with standard electronics and careful printing
- DJI O4 Lite Ready - Purpose-built nose section perfectly houses the latest digital FPV systems
- Print-at-Home Advantage - No shipping waits or supply issues
- Weight-Optimized Assembly - Bottom-mount FC, minimal hardware
- Magnetic Battery Hatch - Quick field changes with 8×3mm magnets
- Versatile Nose Options - Camera mount or solid nose included
- Field-Tested Performance - Refined through real-world flying
- Zephyr Manual Viewer – The ultimate build companion for Mac and Windows. Ditch static PDFs for fully interactive 3D guides. Rotate models, identify parts instantly, and follow clear step-by-step assembly instructions to build your aircraft with confidence
Specs
| Wingspan | 600mm |
| Target Weight | <250g configured |
| Heavier Option | 250–300g with larger batteries for longer range |
Electronics
- SpeedyBee Mini F405 Wing FC
- EMAX 20A DSHOT ESC
- EMAX 1108 5200kv motor
- 2× EMAX 90052 MG servos
- AVAN Mini 3" props
- 2S battery (~50g for sub-250g)
- DJI O4 Lite FPV system
Hardware & Filament
- 6mm × 500mm carbon rod
- 4 x (8×3mm) magnets (rear hatch)
- M2 machine screws
- M2 self-tapping
- LW-PLA main structure
- PETG
- PLA+
