The Thrust Vectoring (TV) system adds 2-axis pitch and yaw authority at the nozzle using two servos. This allows post-stall aerobatics, flat spins, and maneuvers impossible with elevons alone. The system works alongside standard elevon controls and is designed as an add-on module for any aircraft.
Key Features
- 2-Axis Control - Adds pitch and yaw authority to your EDF jet
- 2-Axis Control - Provides pitch and yaw authority for post-stall control
- Print-in-Place - Ball joint and nozzle print as one unit
- Universal Fit - Designed as an add-on module for custom builds
Specifications
Specs
| EDF Size | 64mm |
Required Parts
- 2x EMAX ES08MAII 12g Servos
- 2x M2 Pushrods (~60-80mm)
- 4x M2 Ball Joints (Required on both ends)
- 1x M3 Screw (6-8mm)
- CA Glue
- Hot Glue

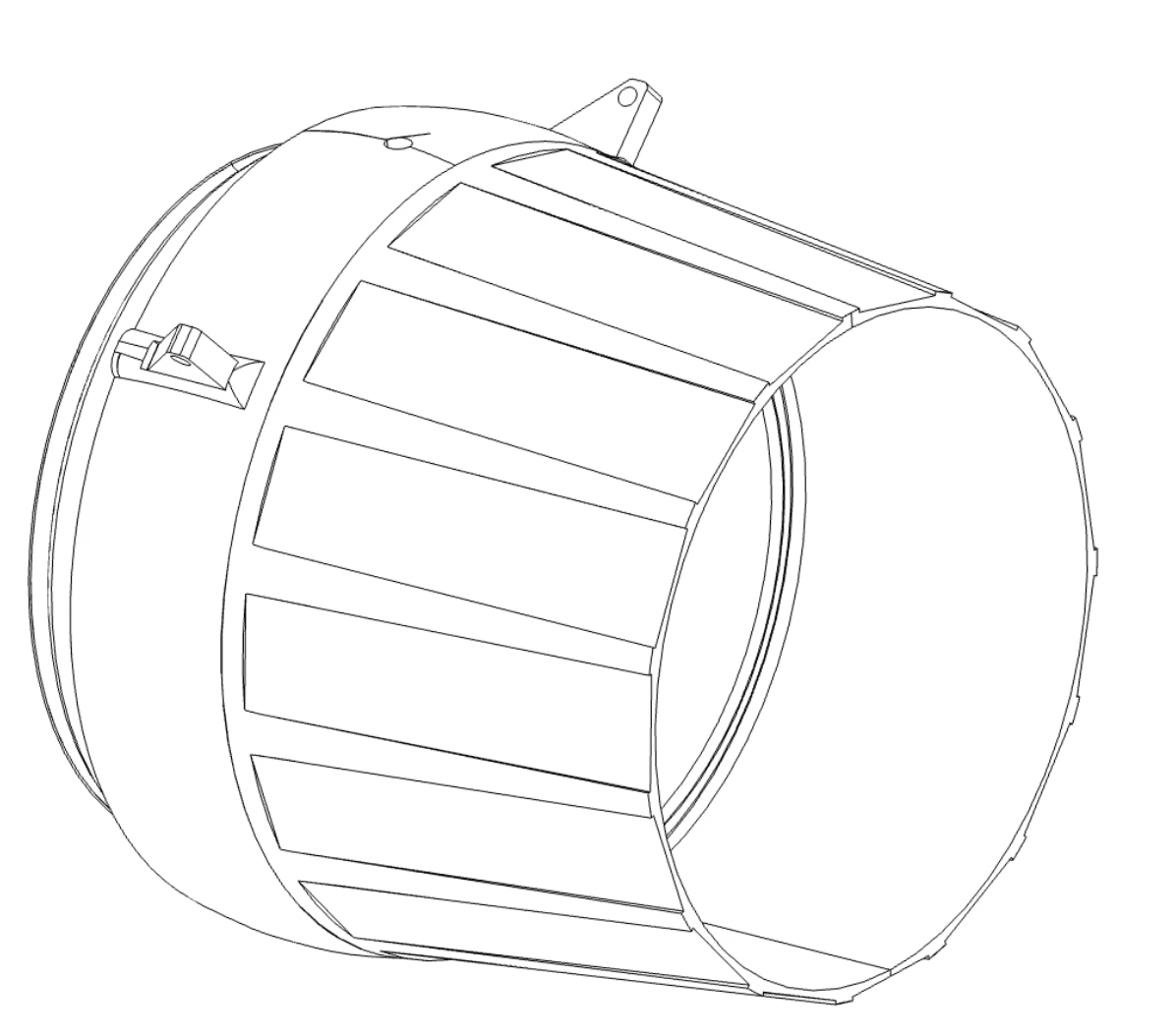

Gallery
